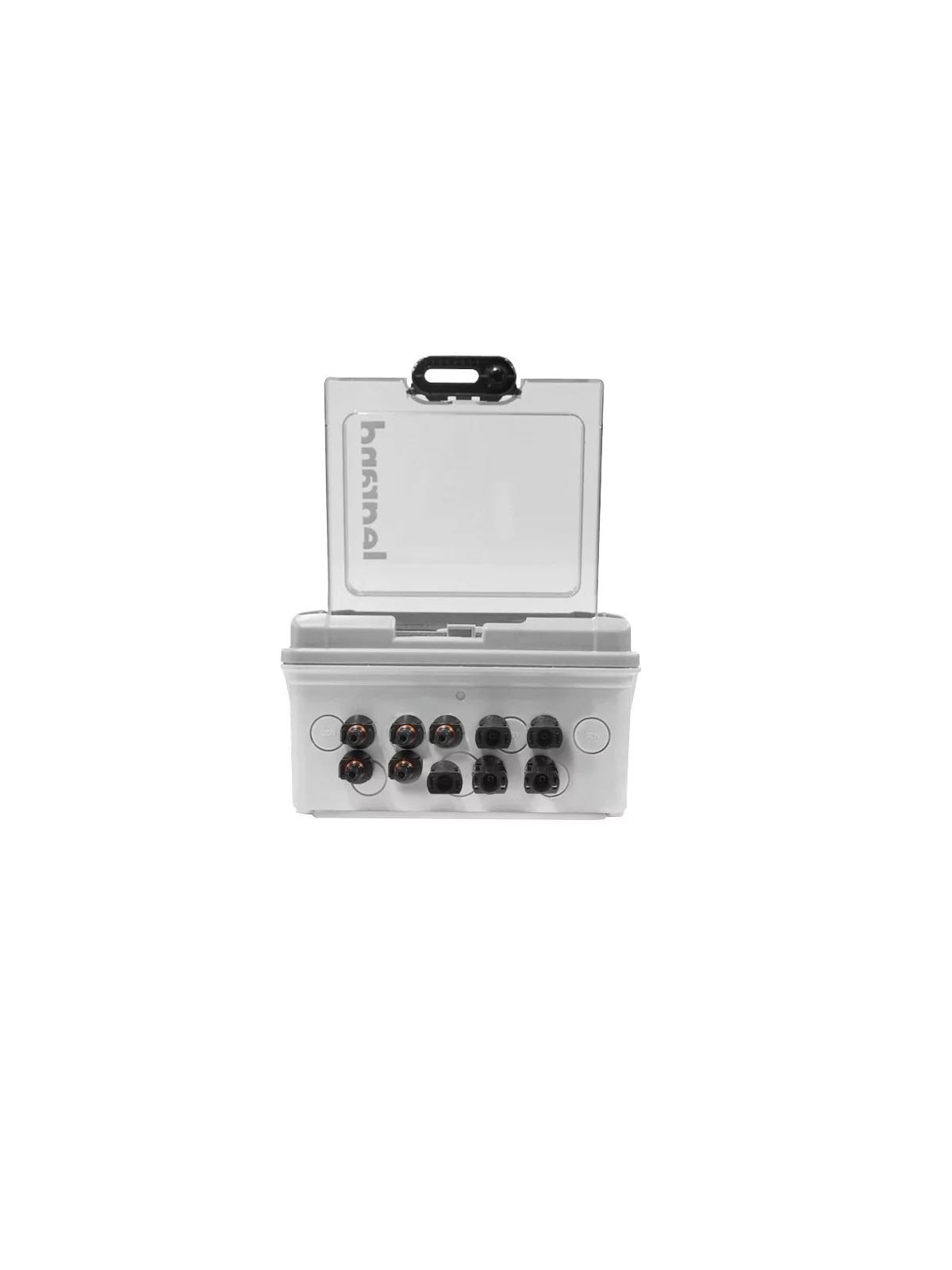

    Box for paralleling 2-3-4-5 solar field with integrated DC disconnect

    269,86 €
    Inklusive Steuer
    INC01414U2345
    0712971135284

    Enclosure enabling the paralleling of 2, 3, 4 or 5 series (string) of photovoltaic panels
    The integrated disconnector makes it possible to disable the panels safely, for example to start up the installation

    Connects up to 15 photovoltaic modules on WKS inverter 3, 4, and 5 KVA. (2, 3, 4 or 5 string of 3 panels ).

    Please choose your model in the options

    Box number of entries: 2 entries

    Box for paralleling 2-3-4-5...

    269,86 €

    Box for paralleling 2-3-4-5 solar field with integrated DC disconnect



    Box for paralleling two solar fields comprising:

    • An electrical box Legrand, 4 modules
    • MC4-like on the bottom simplifies installation
    • Integrated DC disconnect
    • 16mm² 2m output for connection to the inverter

    Box for paralleling three solar fields comprising:

    • An electrical box Legrand, 4 modules
    • MC4-like on the bottom simplifies installation
    • Integrated DC disconnect
    • 16mm² 2m output for connection to the inverter

    Box for paralleling four solar fields comprising:

    • An electrical box Legrand, 8 modules
    • 2 ERIFLEX for parallel
    • MC4-like on the bottom simplifies installation
    • Integrated DC disconnect
    • 16mm² 2m output for connection to the inverter



    Box for paralleling 2-3-4-5 solar field with integrated DC disconnect

    Connects up to 12 photovoltaic modules on WKS 3, 4, and 5 KVA



     Box for paralleling five solar fields comprising:



    • An electrical box Legrand, 8 modules
    • Erixflex
    • MC4-like on the bottom simplifies installation
    • Integrated DC disconnect
    • 16mm² 2m output for connection to the inverter
    INC01414U2345

    Datenblatt

    Art des elektrischen Materials
    Coffret
    Sectionneur
    Kabeltypen und Anschlüsse
    Coffret

    Spezifische Referenzen

    Neu
